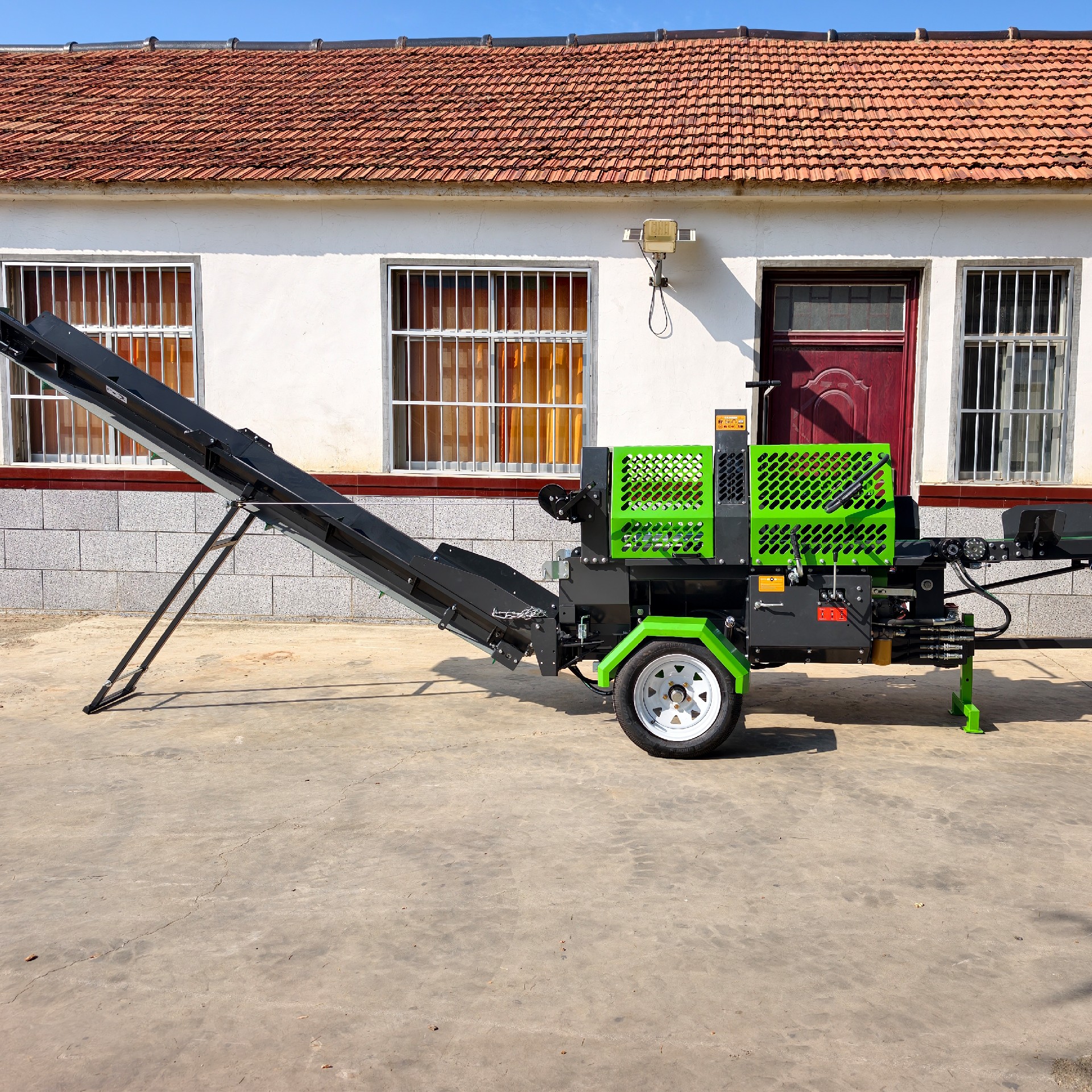

Product Description
Technical specifications
Performance
Max splitting power: 20T
Max splitting length: Standard 610mm (24 inch)

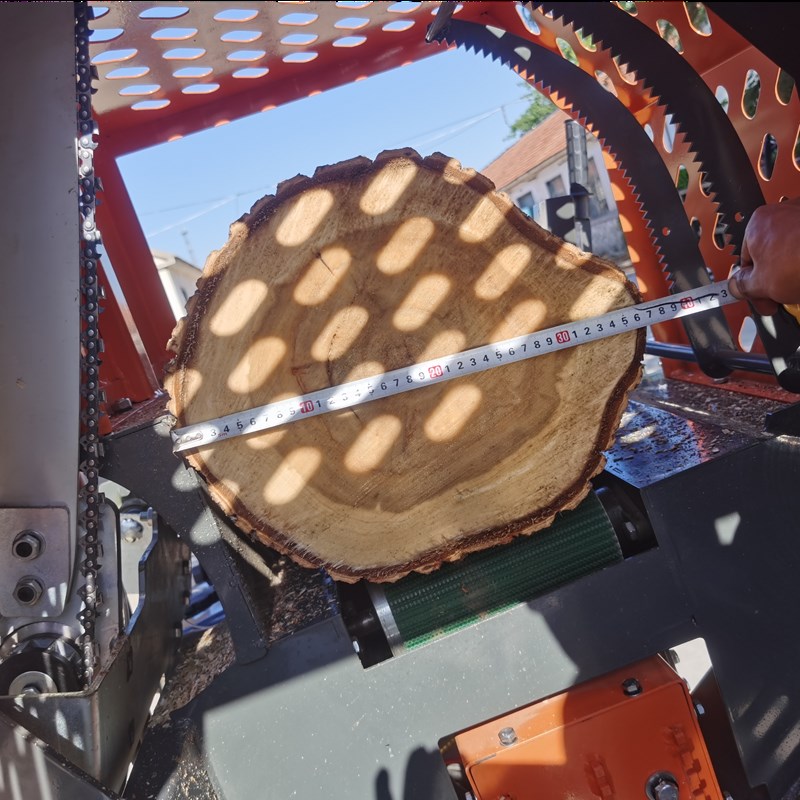

Max cutting & splitting diameter: 480mm (19 inch)
Cycle time: 8
Work efficiency: 4-7CBM/H
Wood fixing: manual
Saw cutting: manual
Splitting: automatic
Splitting wedge: manual height adjustable
Machine assembly
Engine: 15HP gasoline (electric start)
Pump: 13GMP (2-stage)
Splitting cylinder: 3.15”x24”x2”
Hydraulic oil tank: 48L

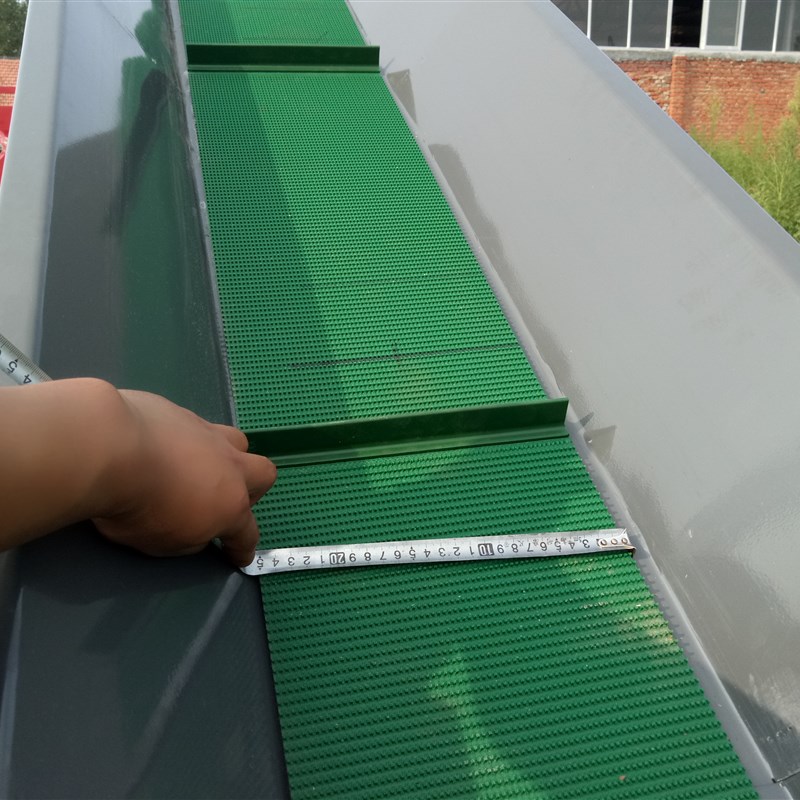

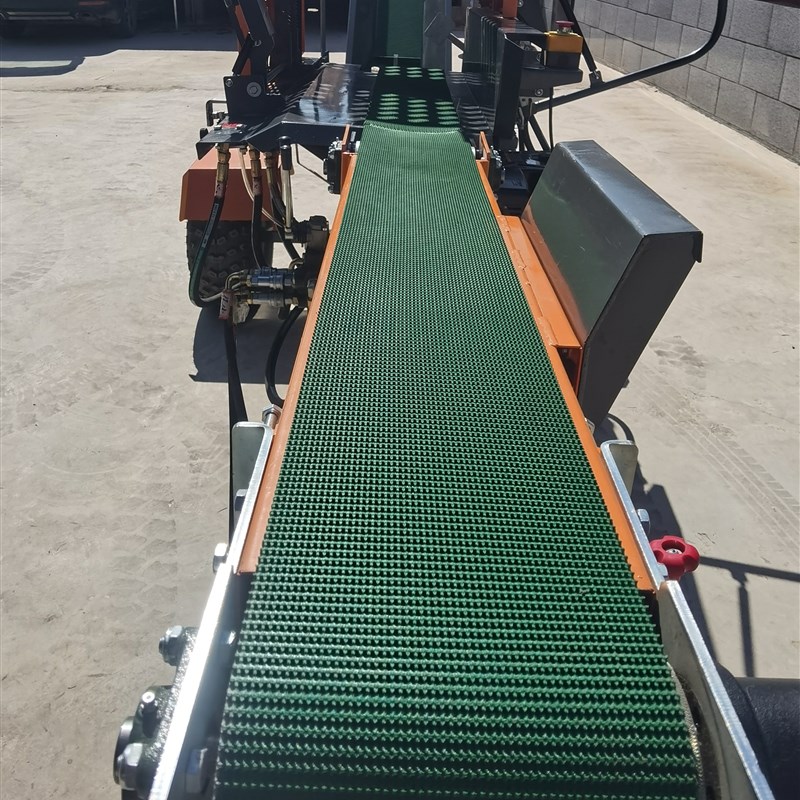

Feeding conveyor: 2400*200mm
Rear loading conveyor: 3200*250mm

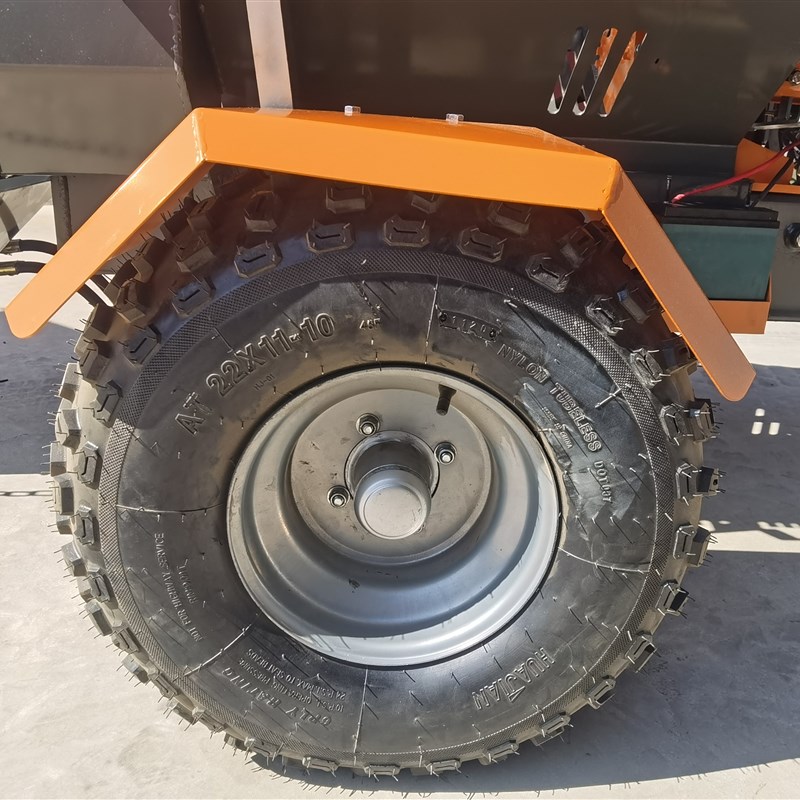

Tyre: 22x11-10
Traction: 50mm ball couple
