Product Description
Technical specifications
Model | FC4200 | FC4700 | FC5500 | FC6500 |
Max Outreach, M | 4.2 | 4.7 | 5.5 | 6.5 |
Lifting Moment, gross KNm | 28 | 28 | 44 | 52 |
Lifting capacity at 4 m (excl. grapple and rotator, KG) | 300 | 400 | 550 | 800 |
Lifting capacity at full reach (excl. grapple and rotator, KG) | 280 | 300 | 500 | 480 |
Telescopic boom, PCS | non | 1 (option non) | 1 (option non) | 1 (option 2) |

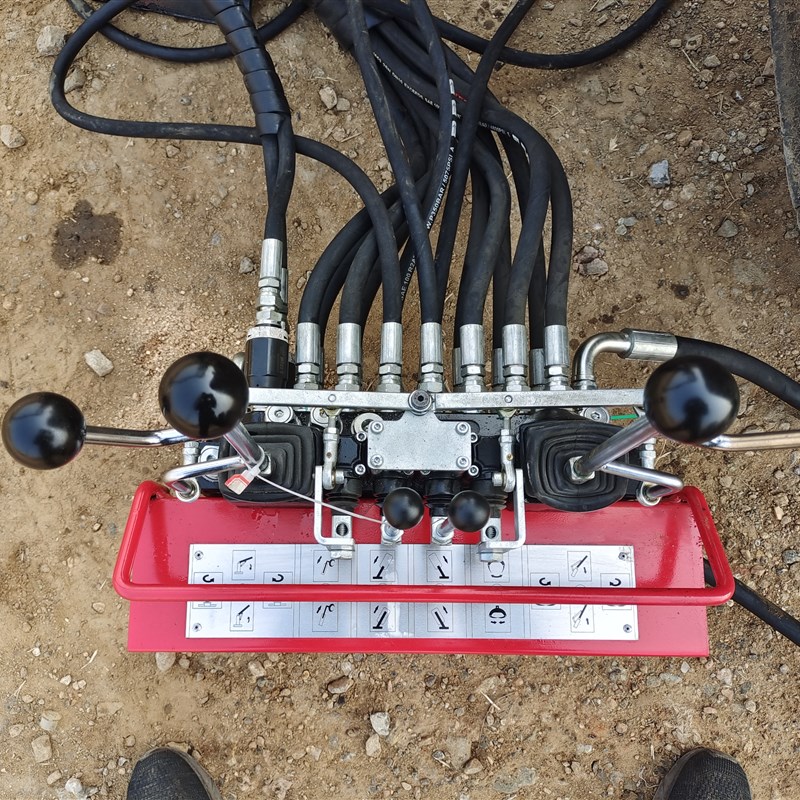

Valve Block | 5/7 | 5/7 | 5/7 | 6/8 |
Slewing torque, KNm | 7 | 7 | 11.1 | 11.1 |

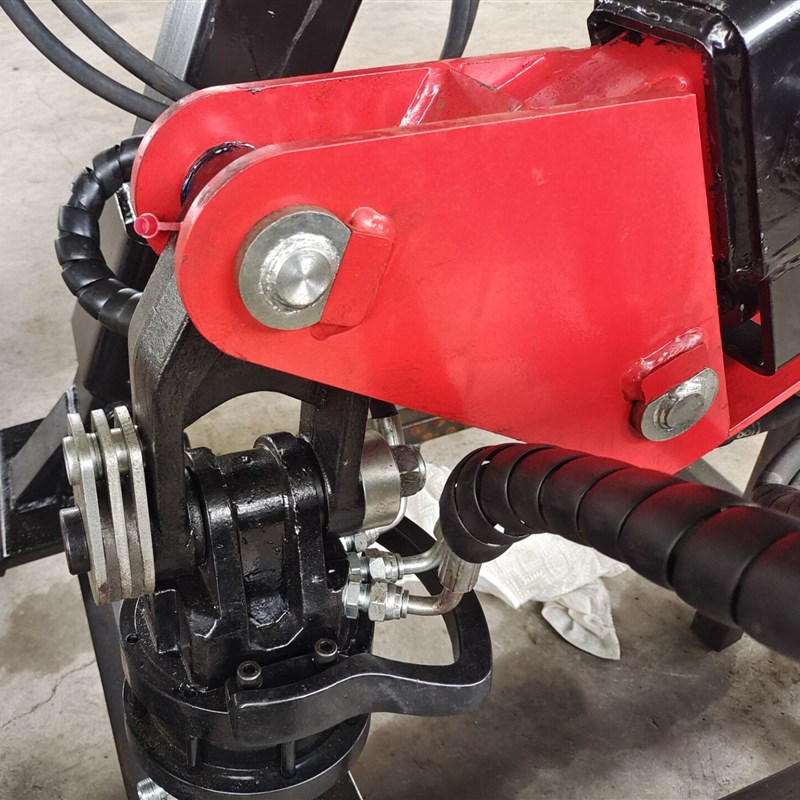

Rotator, TON | 3 | 3 | 3 | 3 |

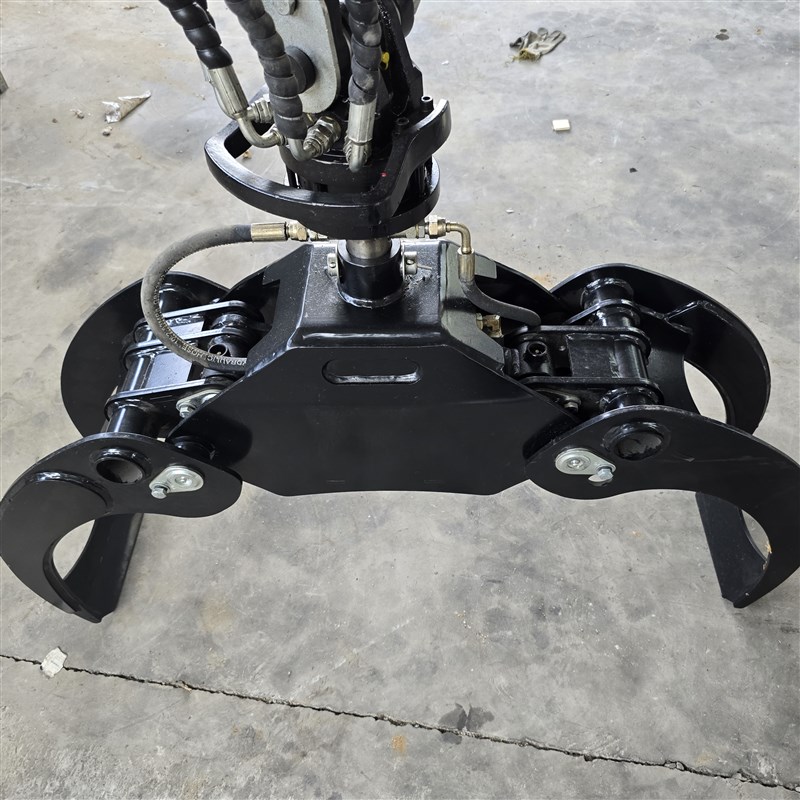

RG Series Grapple,M2 | 0.14 | 0.18 | 0.22 | 0.22 |
Slewing angle, ° | 360 | 360 | 360 | 360 |
Slewing cylinders, PCS | 4 | 4 | 4 | 4 |
Working pressure, BAR | 175 | 175 | 180 | 190 |
Crane's weight (without outriggers & valve block) | 720 | 800 | 1300 | 1600 |
3-Point Linkage | Cat-1&2 | Cat-1&2 | Cat-2 | Cat-2 |
